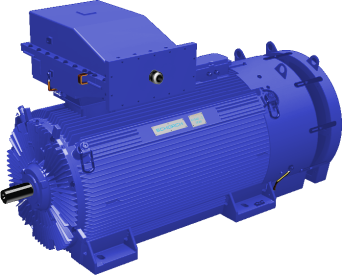

Rip Cooled Motors, KA5 Series, Safe Area


KA5..

Product Features

Series KA5
Frame size 400 - 560
Power output 355 - 2.240 kW
Mounting arrangements B3, B35, B5, V1,
Number of poles 2 -12
Bearings Rolling elements
Voltages 3 - 11 kV line and inverter operation
Frame construction Cast iron
Degree of protection IP55, IP56, IP65, IP66
Temperature class 155 (F) according to 130 (B)
Cooling method IC411
Certificate CE

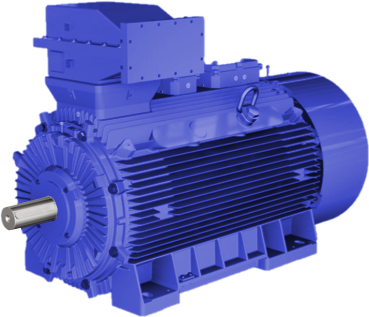

Rip Cooled Motors, KE2 Series, Hazardous Area


KE2..

Product Features

Series KE2
Frame size 315 - 500
Power output 160 - 1.330 kW
Mounting arrangments B3, B5, B35, V1
Number of poles 2 -16
Bearings Rolling elements or sleeve bearings
Voltages 3 - 11 kV line and inverter operation
Frame construction Cast iron
Degree of protection IP55, IP56, IP65
Temperature class 155 (F) according to 130 (B)
Cooling method IC411
Certificate ATEX, (IECEx)
Ex protection level (II 2 G) Ex eb IIC T3/T4 Gb

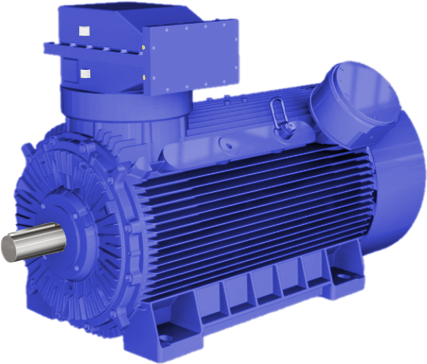

Rip Cooled Motors, KD2 Series, Hazardous Area


KD3..

Product Features

Series KD2
Frame size 355 - 500
Power output 180 - 1.320 kW
Mounting arrangments B3, B35, V1
Number of poles 2 -16
Bearings Rolling elements or sleeve bearings
Voltages 3 - 11 kV line and inverter operation
Frame construction Cast iron
Degree of protection IP55, IP56, IP65
Temperature class 155 (F) according to 130 (B)
Cooling method IC411
Certificate ATEX, (IECEx)
Ex protection level (II2G) Ex db IIB/C T3/T4 Gb or
Ex db eb IIB/C T3/T4 Gb

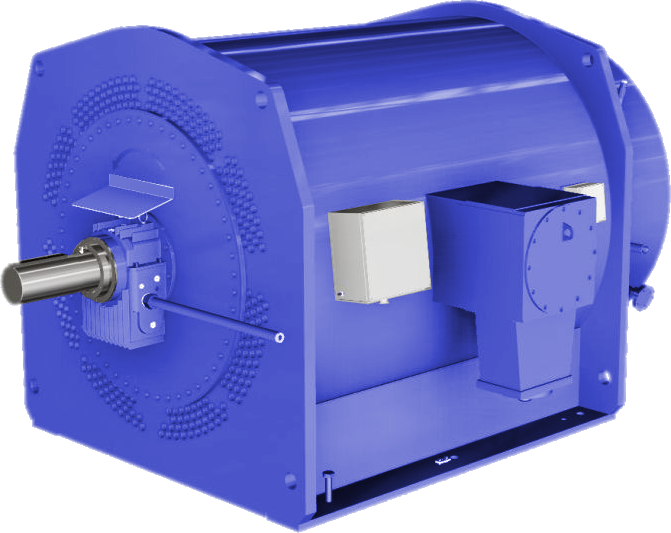

Tube Cooled Motors, KR Series, Hazardous Area


KR..

Product Features

Series KR
Frame size 500 - 1.700
Power output 160 - 1.700 kW
Mounting arrangments B3, V1
Number of poles 2 - 24
Bearings Rolling elements or sleeve bearings
Voltages 3 - 15 kV line and inverter operation
Frame construction Fabricated steel
Degree of protection IP55, IP65
Temperature class 155 (F) according to 130 (B)
Cooling method IC511
Certificate ATEX, (IECEx)
Ex protection level (II 3G) Ex ec IIC T1-T4 Gc

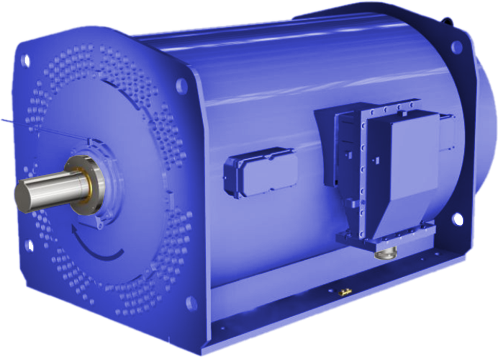

Tube Cooled Motors, KR Series, Hazardous Area


KR..

Product Features

Series KR
Frame size 500 - 1.500
Power output 160 - 13.200 kW
Mounting arrangments B3, V1
Number of poles 2 - 24
Bearings Rolling elements or sleeve bearings
Voltages 3 - 11 kV line and inverter operation
Frame construction Fabricated steel
Degree of protection IP55, IP65
Temperature class 155 (F) according to 130 (B)
Cooling method IC511
Certificate ATEX, (IECEx)
Ex protection level (II2G) Ex db IIB or C T3/T4 Gb and
(II2G) Ex db eb IIB or C T3/T4 Gb

Modular Motors, KV Series, Safe Area


KV..

Product Features

Series KV
Frame size 400 - 1.200
Power output 160 - 17.000 kW
Mounting arrangments B3, V1
Number of poles 2 - 24
Bearings Rolling elements or sleeve bearings
Voltages 2,3 - 15 kV line and inverter operation
Frame construction Fabricated steel
Degree of protection IP55, IP65
Temperature class 155 (F) according to 130 (B)
Cooling method IC611
Certificate CE

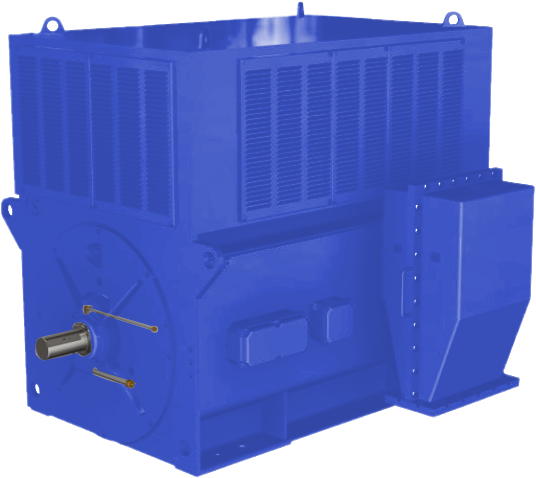

Modular Motors, KB / KF / KS Series, Safe Area


KB/KV/KF..

Product Features

Series KB/KV/KF
Frame size 400 - 1.000
Power output 180 - 15.000 kW
Mounting arrangments B3, B35, V1
Number of poles 2 - 24
Bearings Rolling elements or sleeve bearings
Voltages 3 - 15 kV line and inverter operation
Frame construction Fabricated steel
Degree of protection IP23
Temperature class 155 (F) according to 130 (B)
Cooling method IC01, WPI, WPII
Certificate CE

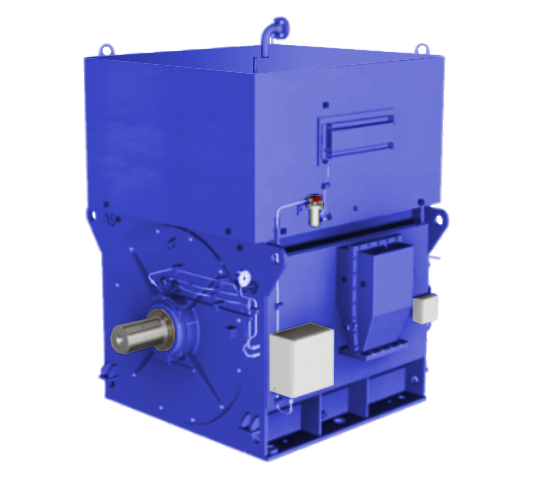

Modular Motors, KU Series, Hazardous Area


KU..

Product Features

Series KU
Frame size 400 - 1.200
Power output 160 - 17.000 kW
Mounting arrangments B3, V1
Number of poles 2 - 24
Bearings Rolling elements or sleeve bearings
Voltages 3 - 15 kV line and inverter operation
Frame construction Fabricated steel
Degree of protection IP55, IP65
Temperature class 155 (F) according to 130 (B)
Cooling method IC81W
Certificate ATEX, (IECEx)
Ex protection level (II 3G) Ex ec IIC T3/T4 Gc
(II 2G) Ex eb IIC T3/T4 Gb
(II 2G) Ex pxb IIC T3/T4 Gb

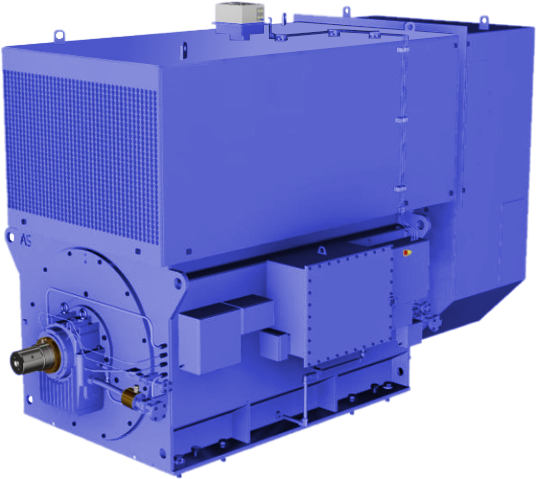

Modular Motors, KV Series, Hazardous Area


KU..

Product Features

Series KV
Frame size 400 - 1.200
Power output 160 - 17.000 kW
Mounting arrangments B3, V1
Number of poles 2 - 24
Bearings Rolling elements or sleeve bearings
Voltages 3 - 15 kV line and inverter operation
Frame construction Fabricated steel
Degree of protection IP55, IP65
Temperature class 155 (F) according to 130 (B)
Cooling method IC611
Certificate ATEX, (IECEx)
Ex protection level (II 3G) Ex ec IIC T3/T4 Gc
(II 2G) Ex eb IIC T3/T4 Gb
(II 2G) Ex pxb IIC T3/T4 Gb

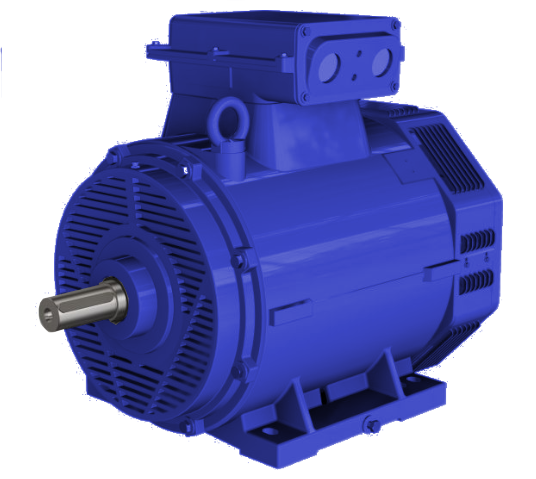

Low Voltage, IEC Motors, KN series IP23


KN..

Product Features

Series KN
Frame size 250 - 400
Power output 37 - 1.300 kW
Mounting arrangements B3, B35, B5, V1, V3, V5, V6
Number of poles 2, 4, 6, 8, 10
Efficiency class IE2, IE3
Voltages 200 - 690 V line and inverter operation
Frame construction Cast iron
Degree of protection IP23
Temperature class 155 (F) according to 130 (B) or
180 (H) according to 155 (F)
Cooling method IC01, IC06
Certificates CE

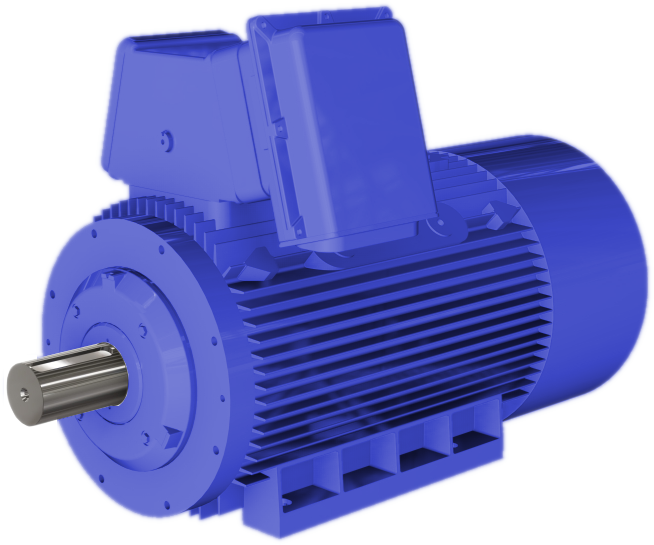

Low Voltage, IEC Transnorm Motors, KA2 series


KA2..

Product features

Series KA2
Frame size 315 - 560
Power output 375 - 1.320 kW
Mounting arrangements B3, B35, B5, V1, V5, V6
Number of poles 2, 4, 6, 8, 10
Efficiency class IE3
Voltages 200 - 1.100 V Line and inverter operation
Frame construction Cast iron
Degree of protection IP55, IP56. IP65, IP66
Temperature class 155 (F) according to 130 (B) or
180 (H) according to 155 (F)
Cooling method IC410, IC411, IC416, IC418
Certificates CE

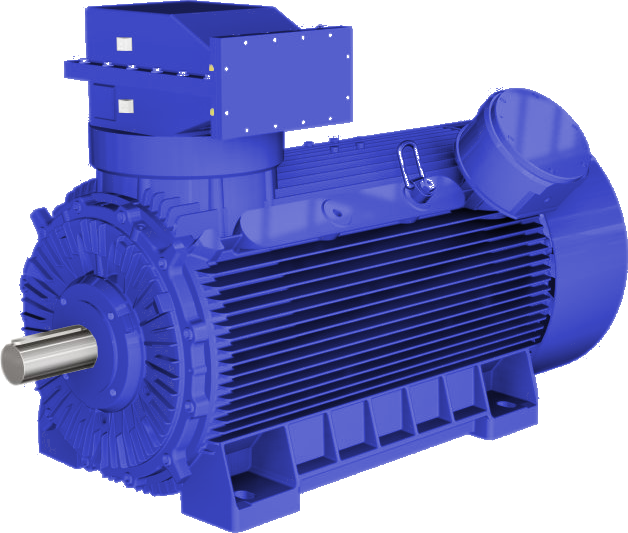

Low Voltage, flame proof motores, KD1, KD2 series


KD1.., KD2..

Product features

Series KD1, KD2
Frame size 63 - 500
Power output 0,12 - 800 kW
Mounting arrangements B14, B18, B3, B35, B5, V1, V5, V6, V18
Number of poles 2 - 16
Ex protection level (II2G) Ex db IIB or C T3/T4 Gb or
(II2G) Ex db eb IIB or C T3/T4 Gb
Voltages 200 - 690 V line and inverter operation
Frame construction Cast iron
Degree of protection IP55, IP56. IP65, IP66
Temperature class 155 (F) according to 130 (B)
180 (H) according to 155 (F)
Cooling method IC410, IC411, IC416, IC418
Certificates ATEX, IECEx

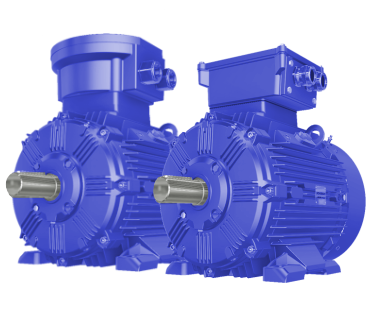

Low Voltage, flame proof motores, WEX3 series


WEX3

Product features

Series WEX3
Frame size 80 - 355
Power output 0,55 - 375 kW
Mounting arrangements B3, B34, B35, B5, B14, V1, on request
Number of poles 2 - 16
Ex protection level (II2G) Ex db IIB/IIC T4/T5 Gb,
(II2G) Ex db eb IIB/IIC T4/T5 Gb,
(II3D) Ex tb IIIB/IIIC T130°C Db,
(II3D) Ex tc IIIB/IIIC T130°C Dc
Voltages 200 - 1140 V line and inverter operation
Frame construction Cast iron
Degree of protection IP55, IP56. IP65
Temperature class 155 (F) according to 130 (B)
180 (H) according to 155 (F)
Cooling method IC411
Certificates ATEX, IECEx

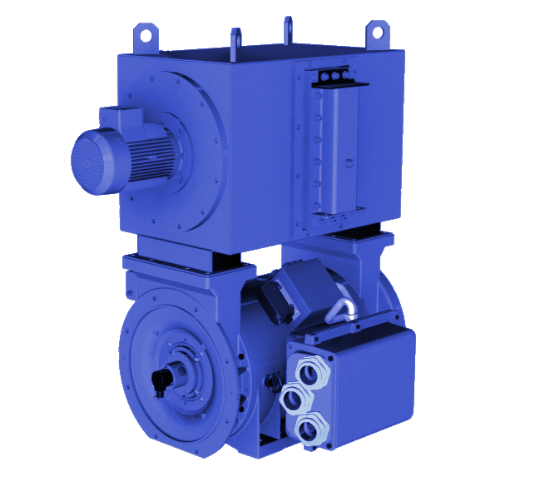

Low Voltage Motor for Variable Speed Control, LN and DQ High Speed Series


LN/DQ..

Product Features

Series LN, DQ
Frame size 180 - 400
Power output 37 - 1.000 kW
Mounting arrangments B3, other
Number of poles 2, 4
Speed range Up to 16.000 /min
Voltages 1.000 V inverter operation
Frame construction Fabricated steel / cast iron
Degree of protection IP23 option IP54
Temperature class 155 (F) according to 155 (F)
Cooling method IC06 option IC86W
Certificate CE

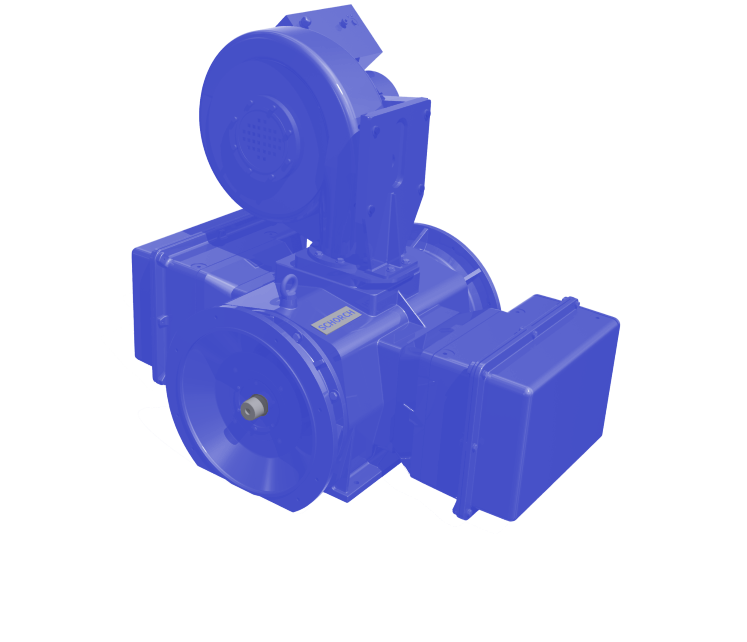

Low Voltage Motor for Variable Speed Control, GN High Speed Series


GN7..

Product Features

Series GN
Frame size 180 - 250
Power output 240 - 940 kW
Mounting arrangments B3, other
Number of poles 6
Speed range Up to 22.000 /min
Voltages < 1.000 V inverter operation
Frame construction Fabricated steel / cast iron
Degree of protection IP23
Temperature class 155 (F) according to 155 (F)
Cooling method IC06
Certificate CE
